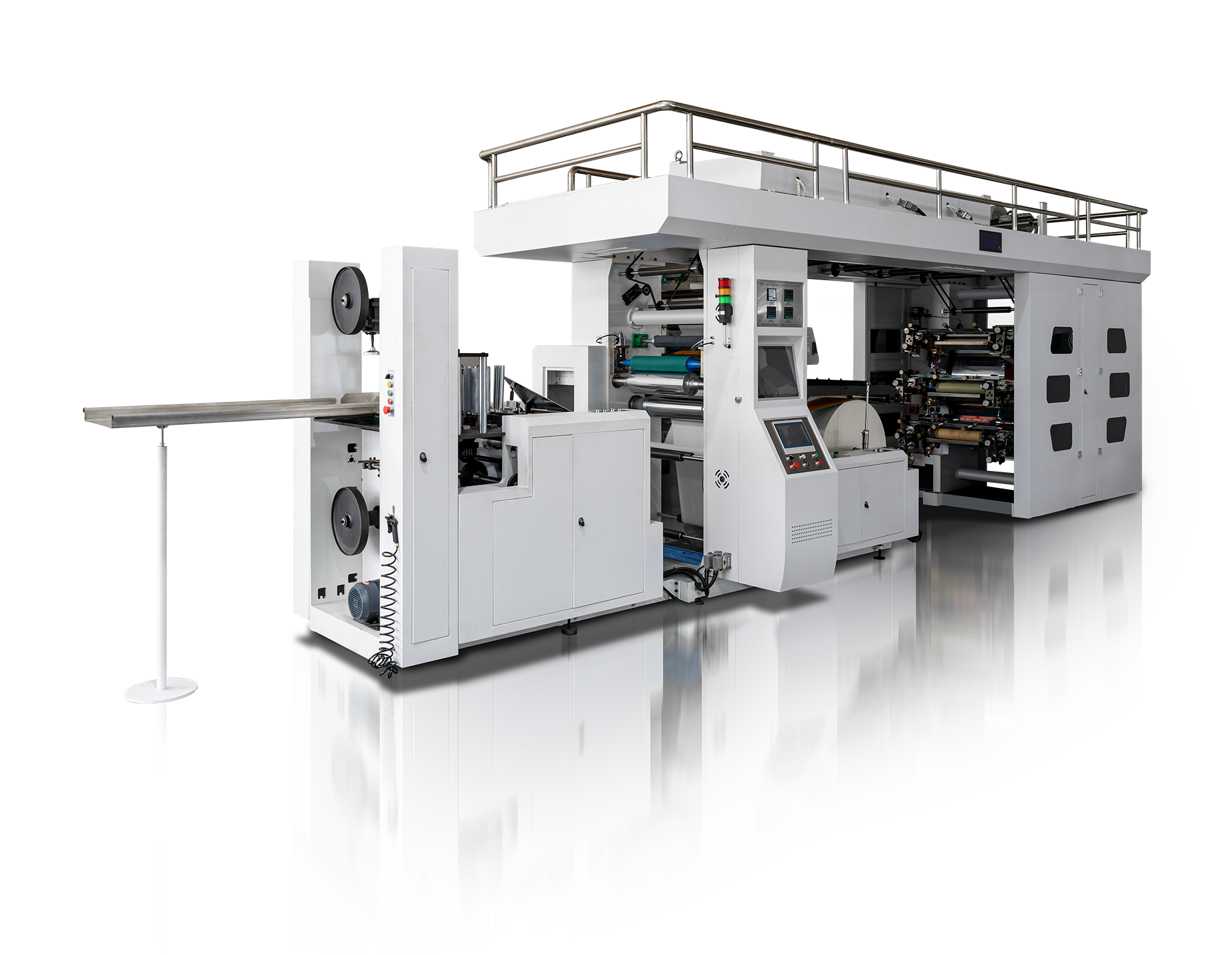

Wenzhou Lisheng Printing & Packaging Machinery Co., Ltd., with 20 years of experience in manufacturing flexographic printing machines, specializes in R&D of printing equipment dedicated to tissue paper. Adopting European technical route and high-rigidity central drum structure, the Mix series central drum flexographic printing machine for napkins is specially designed for ultra-thin napkins of 16–18gsm, solving industry pain points of traditional equipment such as low speed, register drift, long changeover & washing time, and high scrap rate.
I. Core Advantages
- High-speed & Stable Printing: Stable printing speed 150m/min, max mechanical speed 180m/min, greatly improving productivity
- Ultra-high Register Accuracy: ±0.15mm register accuracy, no drift during acceleration/deceleration, more precise multi-color printing
- Fast Job Change & Washing: Complete 6-color machine washing ≤30 minutes, closed doctor blade design for efficient color change
- Ultra-thin Paper Adaptability: Perfectly suitable for 16–18gsm single-layer napkins, resistant to wrinkling and paper breakage
- Low Scrap Rate: Short paper path + unified central drum reference, reducing paper stretching errors and production loss
II. Key Technical Parameters
- Max printing width: 420mm
- Printing length: 230–840mm (customizable with 5mm pitch)
- Applicable paper: 16–18gsm single-layer napkins
- Central drum: Diameter 1200mm, plating >200μm, radial runout ≤0.01mm
- Drying system: 3 sets of independent constant-temperature hot-air drying ovens, intelligent temperature control to prevent ink smearing
- Productivity reference: 725 sheets/min (330×400mm specification)
- Machine dimensions: 9200×2200×2700mm, net weight approx. 9 tons
- Power supply: 380V 50Hz 3P, total power 40kW
III. Core Unit Configuration
1. Unwinding Unit

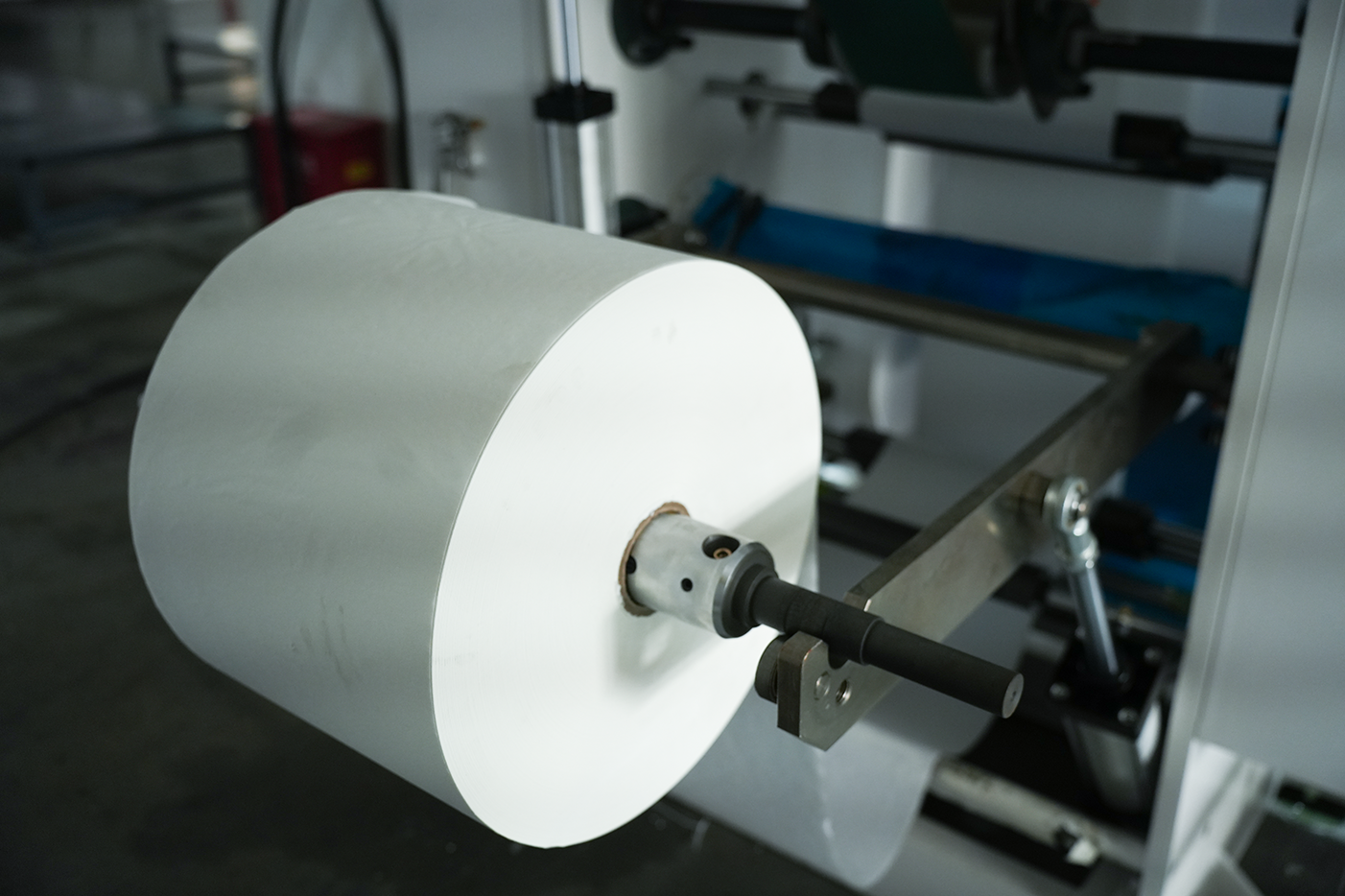

Independent motor + surface belt active unwinding, max roll diameter φ1200mm; low-friction cylinder + high-precision potentiometer closed-loop tension control, pneumatic loading + automatic deviation correction to reduce paper stretching loss.
2. 6-Color Printing Unit
Gear-driven, compatible with water-based/solvent-based inks; ceramic anilox rolls with large bearings to reduce vibration; automatic ink supply during shutdown to prevent ink drying; double-layer reinforced central drum for more stable printing reference.
3. Embossing, Folding & Slitting Unit

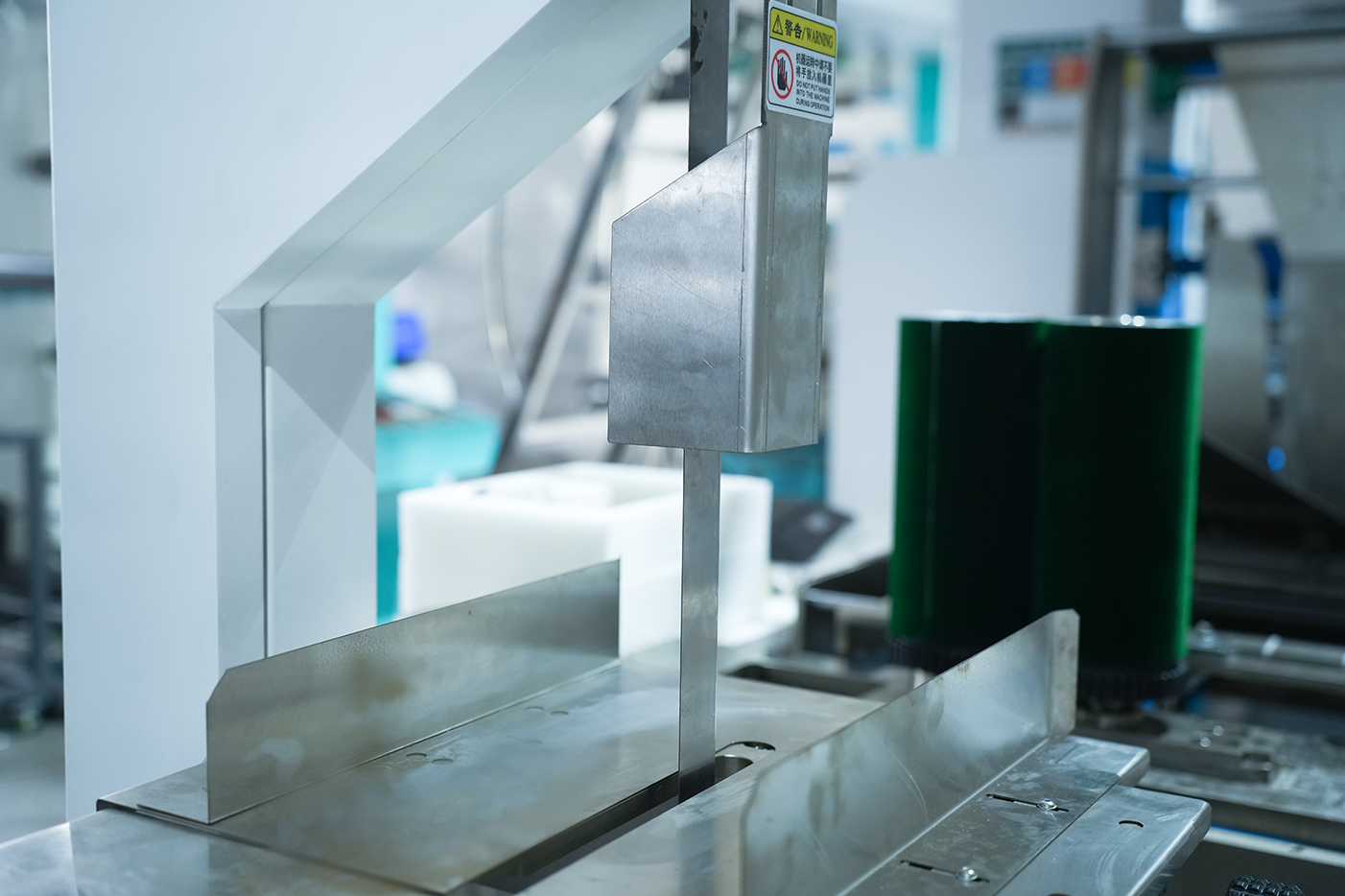

Independent frame embossing device for quick disassembly, customizable patterns; adjustable folding gap, supporting 1/4, 1/6, 1/8 folding; saw blade cutting with adjustable tension for smooth and neat cuts.
4. Intelligent Detection & Control

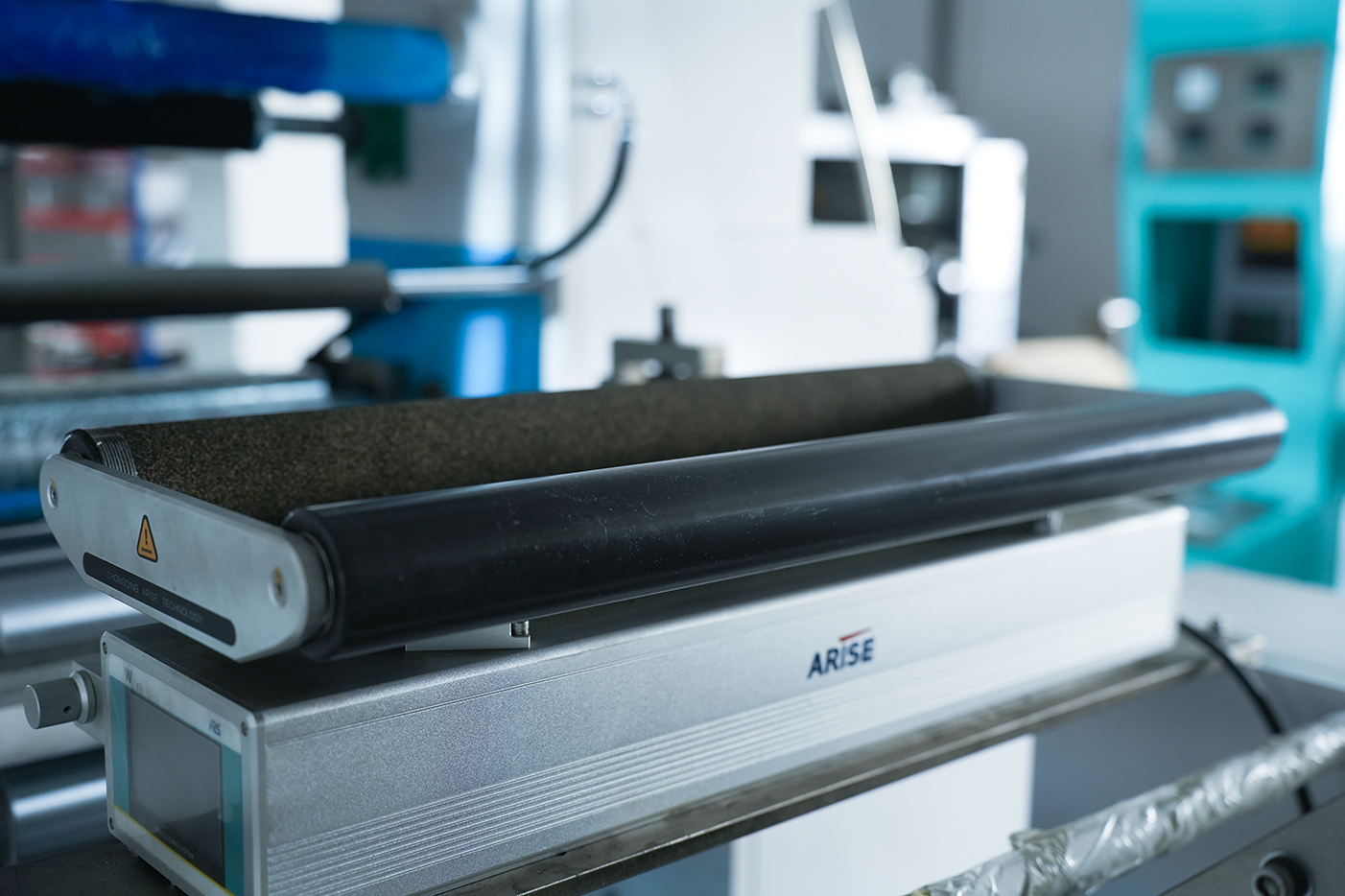

Kesai static image detection system with 3–30x magnification, real-time monitoring of register and pattern quality; Wintech PLC centralized control + touch screen HMI, simple operation with visual fault alarm.
IV. Core Component Brands
- Main motor: Wintech
- Inverter: Inovance
- Contactor: Schneider
- Ceramic anilox roll: Yuncheng
- Static monitor: Kesai
- Ink motor: Maili
V. Installation Requirements & After-Sales Service
Installation Conditions
- Foundation bearing capacity: 6–10 tons/㎡, flat and vibration-free
- Power supply: Three-phase 380V, 5-core cable prepared by customer to the machine side
- Compressed air: ≥0.6MPa, equipped with 10mm air pipe
- Workshop height: At least 1 meter higher than the total machine height
After-Sales Guarantee
- On-site installation & commissioning: 7–10 days with operator training
- Warranty: 12 months after commissioning
- Lifetime technical support: Provide drawings, manuals and long-term guidance
VI. FAQ
-
Can it print ultra-thin napkins below 16gsm?The standard model is suitable for 16–18gsm; for 14gsm, contact the factory for tension system fine-tuning test.
-
Test conditions for ±0.15mm register accuracy?Measured at stable 150m/min speed, 20–25℃ environment, with recommended ink and resin plate.
-
Is proofing and customization supported?Customer-provided paper proofing is supported; customizable items include printing length, embossing pattern, folding specification and ink type.
-
Delivery time and payment terms?Standard delivery: 60 working days; Payment: 30% deposit + 70% balance before shipment.
